Surface Mount Technology

What is SMT

Surface-mount technology (SMT) is basically a component assembly technology related to Printed-Circuit Boards (PCBs) wherein the components are attached and connected on the surface of the board using batch solder-reflow processes.

Bigmate featured SMT Process Machines

Bigmate Philippines Inc. operates through SMT PCB Assembly, or Surface-Mount Technology, a modern approach to surface mounting of electronic components on the printed circuit board (PCB).

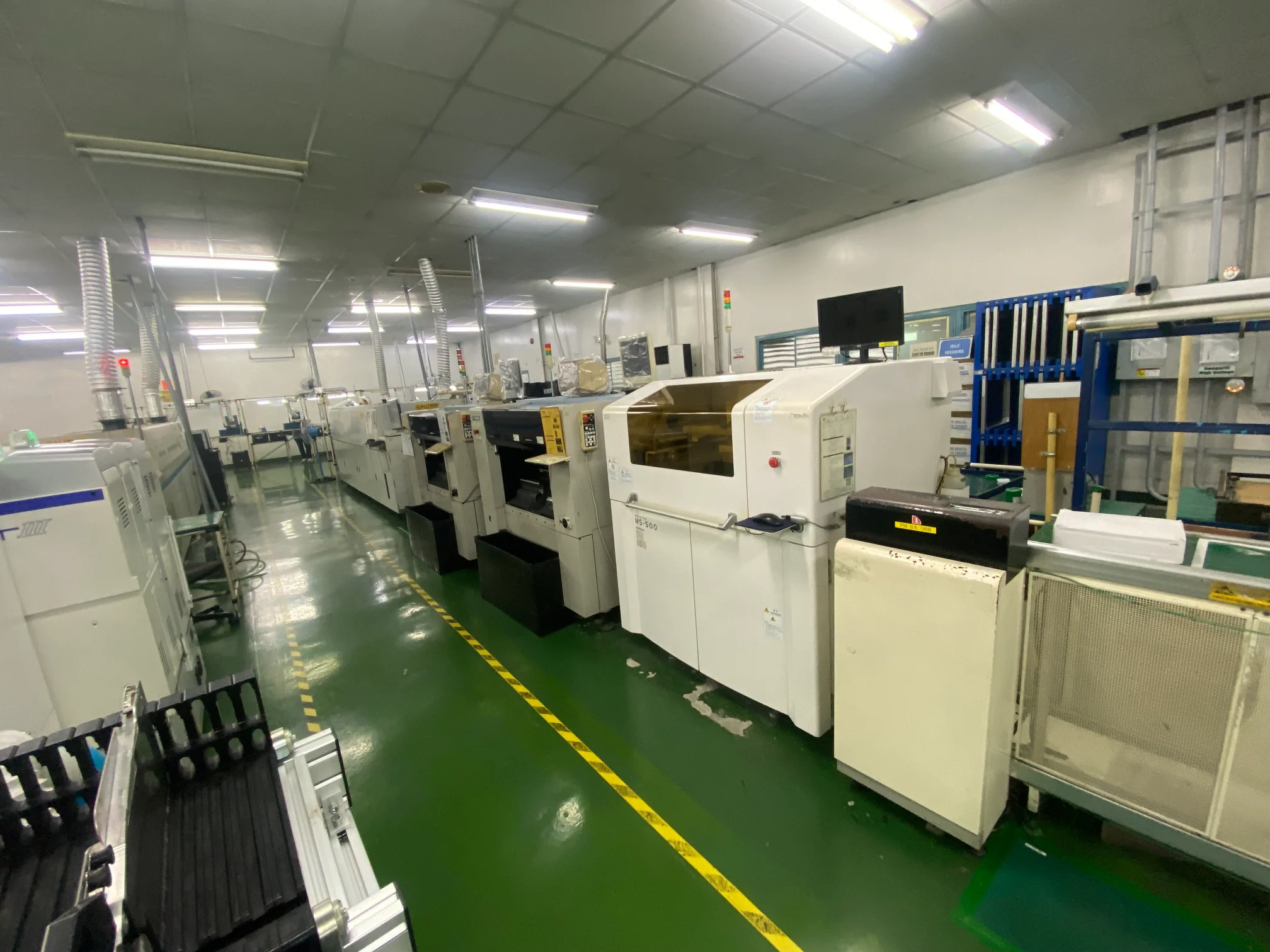

SMT Line 1

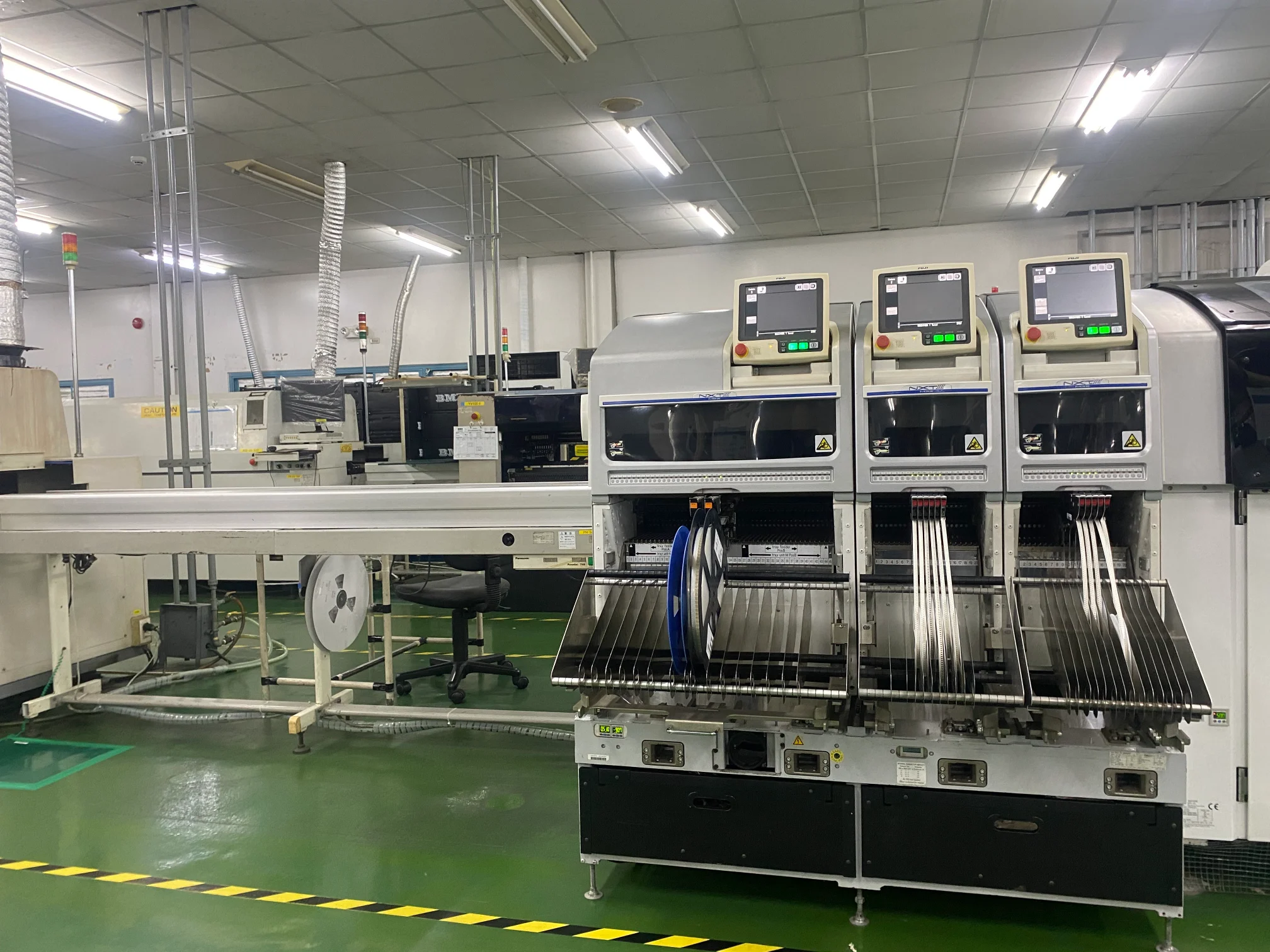

SMT Line 2 showcasing advanced PCB assembly.

We provide the best quality component placement, high-speed production, and quality control, equipped with the machinery and an experienced team, in order to meet the particular specification of the clients in different respective industries.

SMT Machines

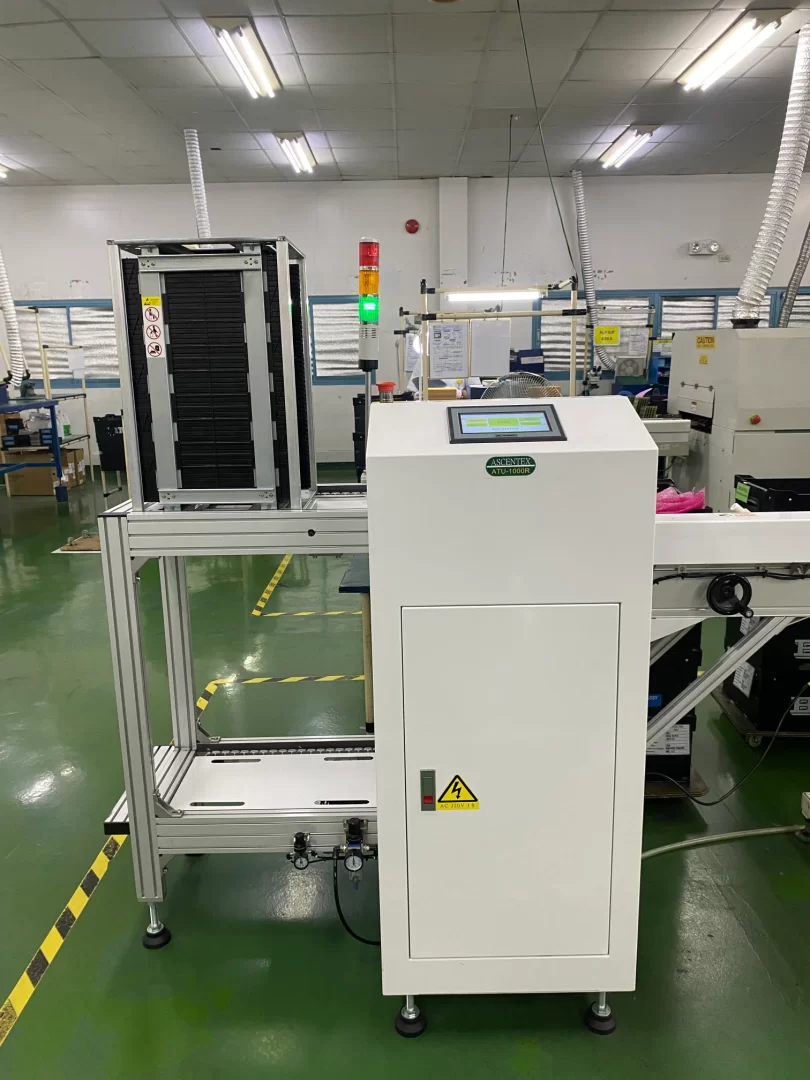

SMT Loader

SMT Unloader: ASCENTEX ATU-1000R

SMT Loader: ASCENTEX ATL-1000R

Maker Name: Ascentex

Maker Model: ATL-1000R

Specifications: An automatic SMT board loading system designed for precise and efficient PCB handling that supports high-volume SMT production lines.

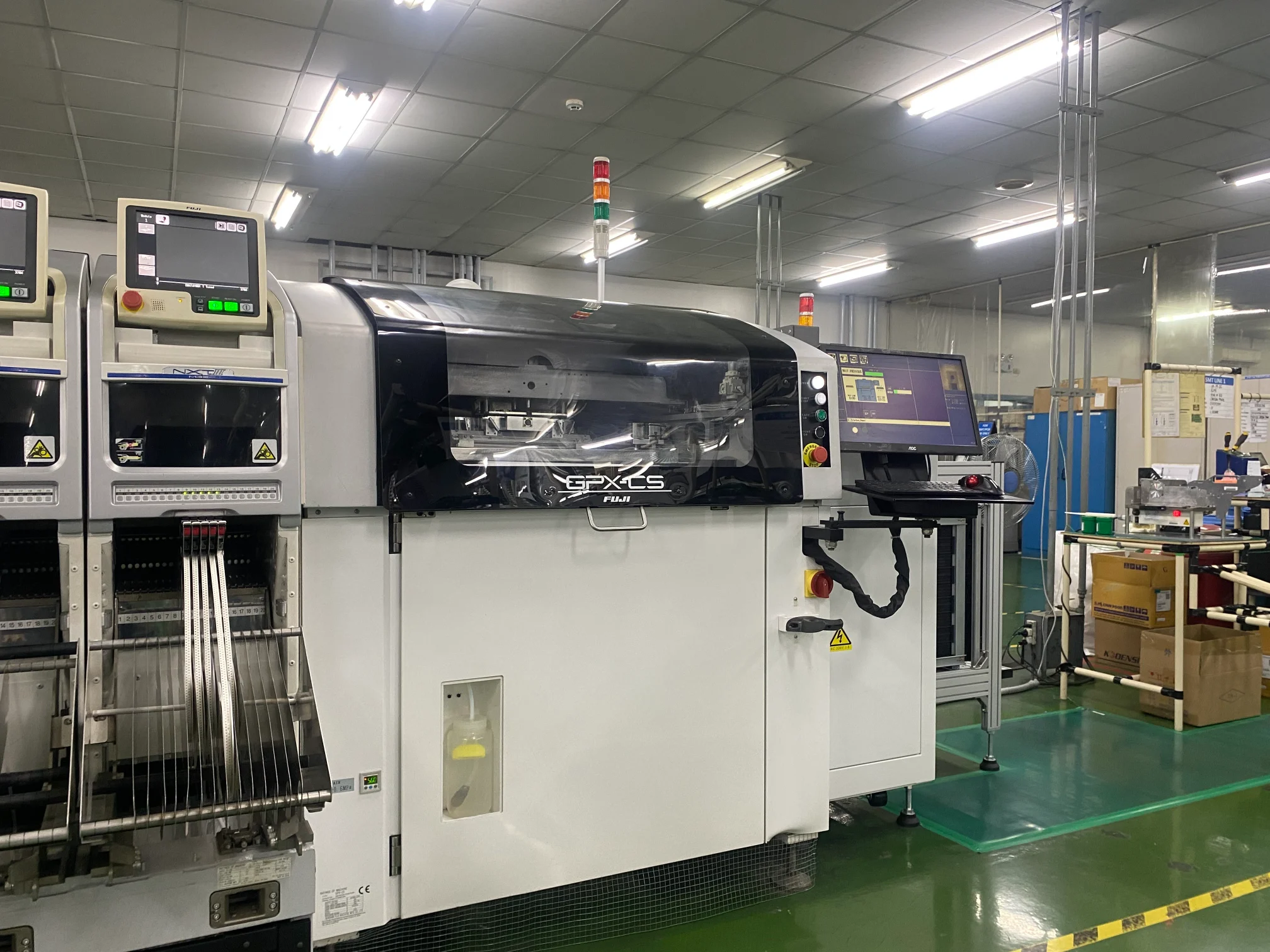

SMT Printer

SMT Printer: GPX-CS Fuji

SMT Printer: GPX-CS Fuji

Maker Name: Fuji

Maker Model: GPX-CS

Specifications: High-speed SMT stencil printer with advanced alignment technology, ensuring precise solder paste application for various PCB sizes.

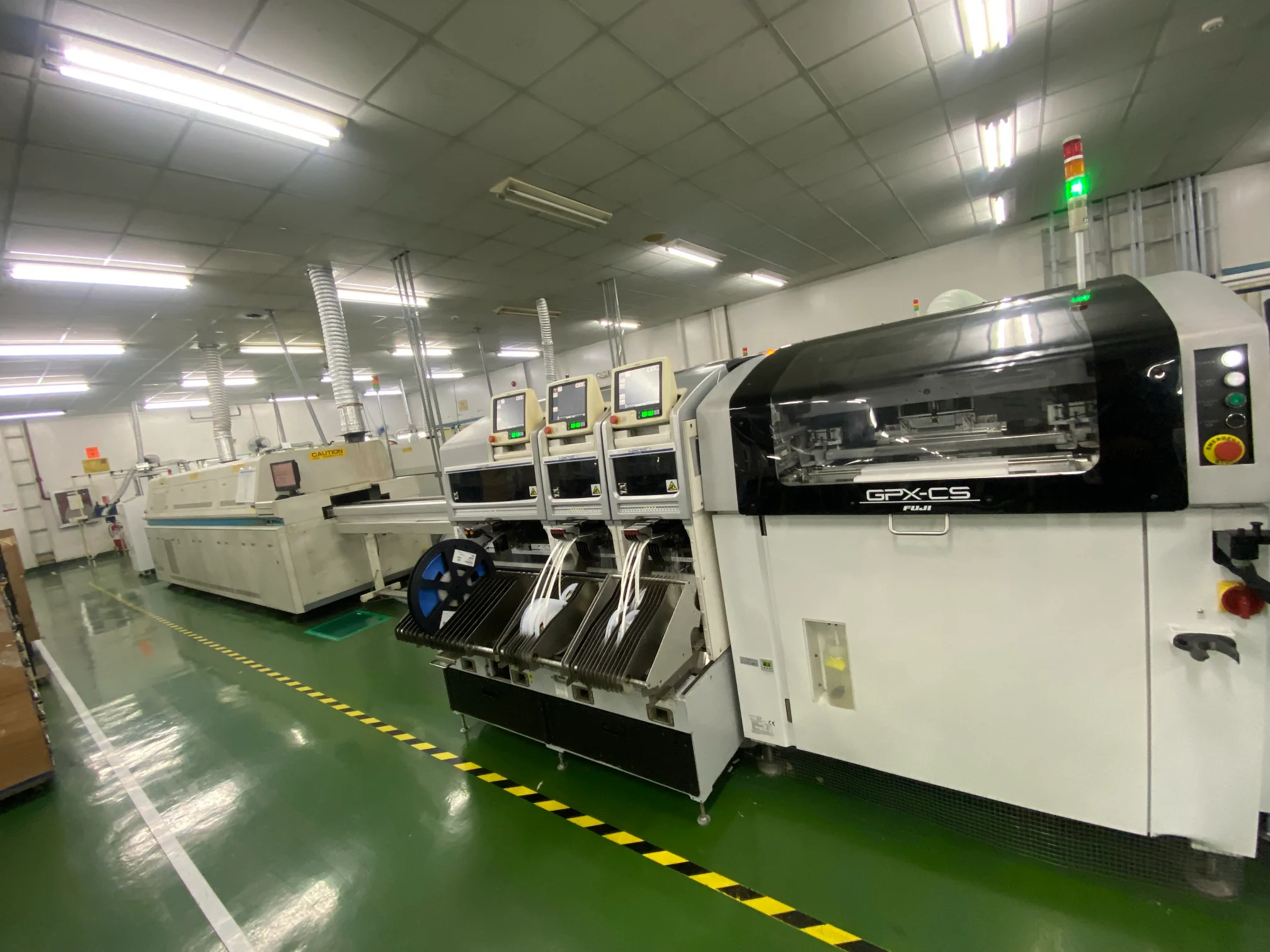

SMT Pick and Place

SMT Pick and Place: Fuji NXT III

SMT Pick and Place: Fuji NXT III

Maker Name: Fuji

Maker Model: NXT III

Specifications: Modular SMT pick-and-place machine with high accuracy, speed, and flexibility, capable of handling a wide range of components and PCB sizes.

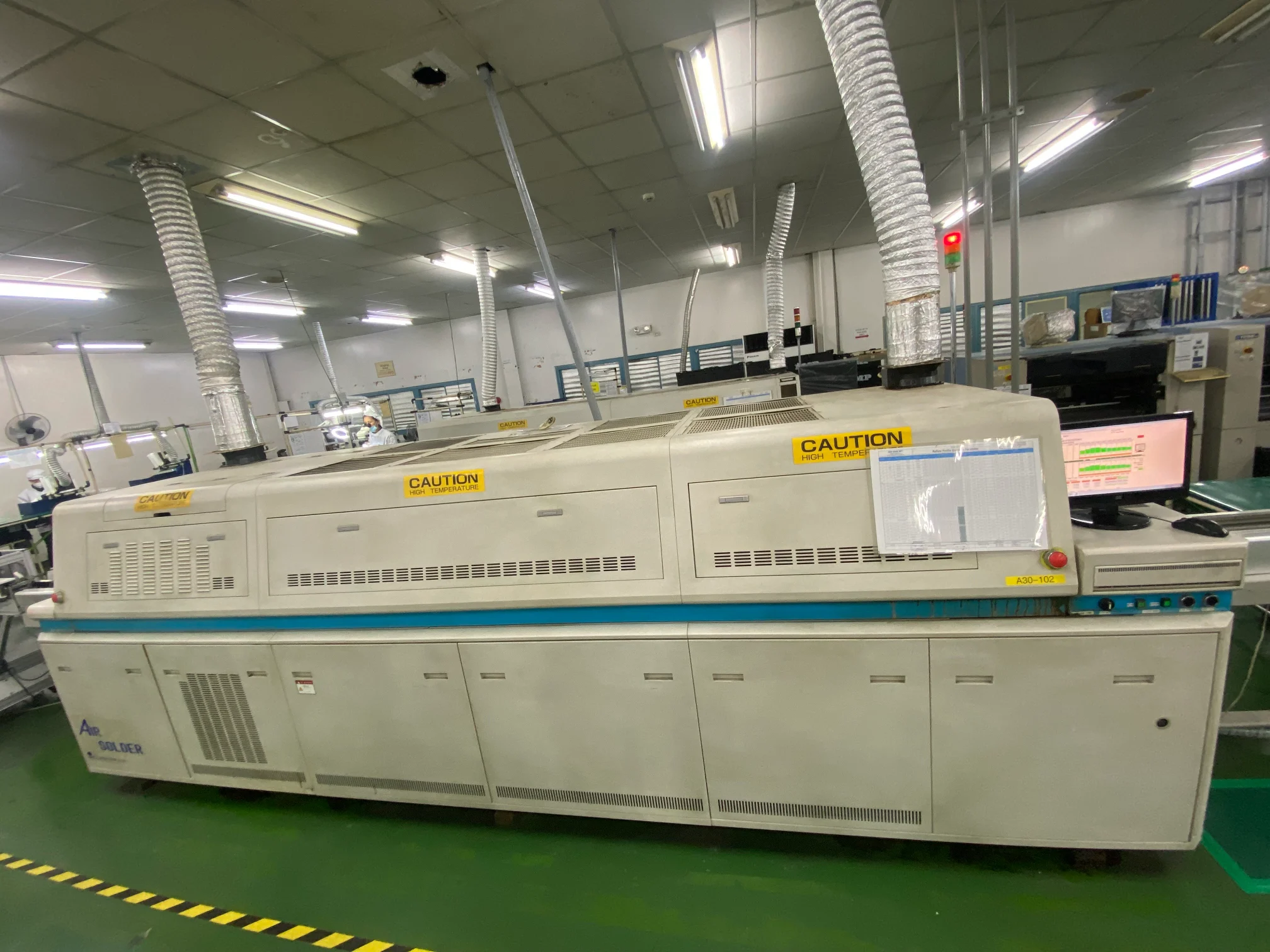

SMT Reflow Oven

SMT Reflow Oven: Air Solder ETC Eightech Tectron A30-102-RLF

SMT Reflow Oven: Air Solder ETC Eightech Tectron A30-102-RLF

Maker Name: Eightech Tectron

Maker Model: A30-102-RLF

Specifications: High-efficiency reflow oven with air soldering technology, equipped with multiple heating zones for precise temperature control during soldering.

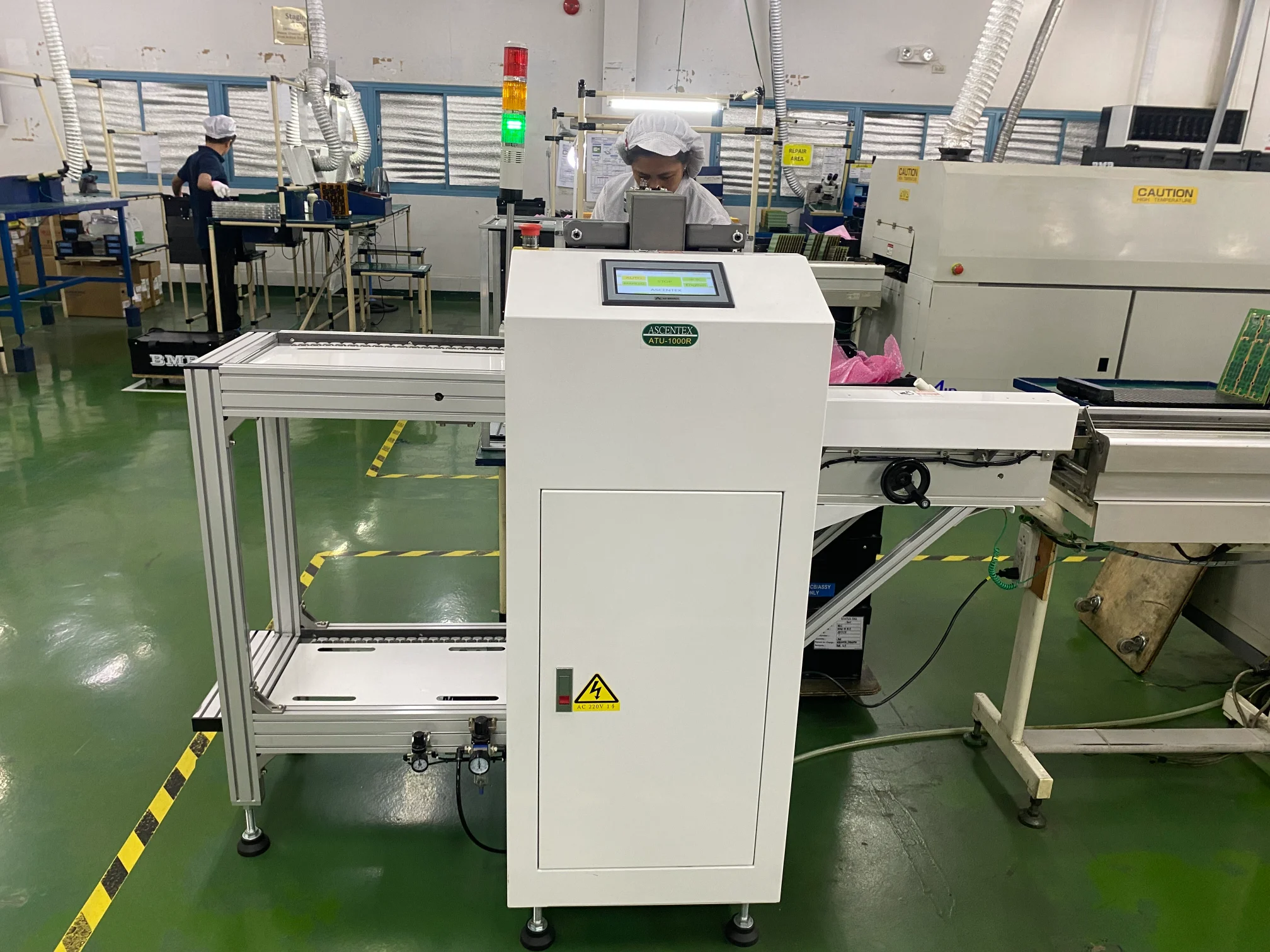

SMT Unloader

SMT Loader: ASCENTEX ATL-1000R

SMT Unloader: ASCENTEX ATU-1000R

Maker Name: Ascentex

Maker Model: ATU-1000R

Specifications: Automatic SMT board unloader, designed for high-volume production lines, ensuring smooth and safe PCB transfer post-assembly.

FAQs about SMT at Bigmate

Can you assemble components from different suppliers?

We can assemble PCBs using components from various suppliers, as long as they meet the required specifications. However, we do not produce the PCB boards themselves.

Can you customize the SMT assembly process for my project?

We follow standardized SMT assembly processes to ensure efficiency and quality. While we don’t offer custom process modifications, we ensure that our assembly meets industry standards and your specified requirements.

Can you handle small-batch or prototype assembly?

We can assemble small batches and prototypes to help businesses test their designs before mass production. However, an Minimum Order Quantity (MOQ) applies.
