What are the Common Challenges of SMT and How to overcome it?

Cover photo featuring a blue-themed design with elements related to the assembly of a printed circuit board (PCB).

Surface Mount Technology (SMT) has significantly transformed the electronics industry, paving the way for smaller, more efficient, and reliable devices. However, SMT PCB assembly comes with its own set of challenges. This blog will explore the common challenges in SMT PCB assembly and provide expert solutions to resolve them.

1. Ensuring Component Placement Accuracy

Challenge: Accurate placement of components on the PCB is crucial. Misaligned components can lead to short circuits, open circuits, or reduced performance.

Solution:

  • Invest in Technology: Use high-precision placement machines and regularly calibrate them.
  • Training and Maintenance: Train operators on the importance of placement accuracy and regularly maintain equipment.

Advanced Tip: Bigmate uses a high precision machine to elevate our production capabilities, ensuring faster, more reliable, and precise assembly of electronic components. You can visit this site for more details about the machine  https://www.bigmateph.com/new-smt-machine/

2. Achieving Consistent Solder Paste Application

Challenge: Inconsistent or insufficient solder paste application can lead to weak solder joints, tombstoning, and bridging.

Solution:

  • High-Quality Stencils: Utilize high-quality stencils specifically designed for your PCB layout.
  • Proper Alignment and Cleaning: Ensure the stencil is properly aligned with the PCB and clean it regularly.
  • Automated Inspection: Implement automated solder paste inspection (SPI) systems to catch defects early in the process.

Advanced Tip: Consider using nano-coated stencils to reduce solder paste sticking and improve consistency.

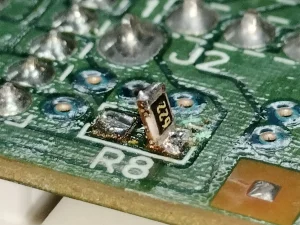

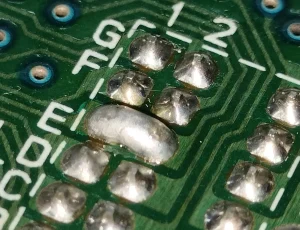

 Example Defects of PCB (Printed Circuit Board):

3. Optimizing the Reflow Soldering Process

Challenge: The reflow soldering process involves heating the PCB to melt the solder paste and form solid solder joints. Incorrect reflow profiles can result in cold solder joints, voids, or heat damage to components.

Solution:

  • Develop Precise Profiles: Tailor reflow profiles to each PCB assembly.
  • Monitor Temperatures: Use thermocouples to monitor the temperature at various points on the PCB during the reflow process.
  • Regular Adjustments: Regularly review and adjust the profiles to accommodate changes in PCB design or component types.

Example: For a complex board, we adjusted the reflow profile by fine-tuning the soak time and peak temperature, which significantly reduced voids and improved overall joint quality.

Side View Air Solder reflow oven machine

4. Managing Component Variability

Challenge: Variations in component size, shape, and packaging can complicate the assembly process, leading to placement errors and soldering defects.

Solution:

  • Standardize Components: Standardize component types and suppliers as much as possible.
  • Comprehensive Library: Create a comprehensive component library with detailed specifications.
  • Quality Inspections: Perform incoming quality inspections to verify component dimensions and packaging before they enter the production line.

Advanced Tip: Use a parts management system to track component changes and ensure consistency across batches.

5. Preventing PCB Warpage

Challenge: Warpage of the PCB during assembly can cause misalignments and poor solder joints, especially for large or thin boards.

Solution:

  • Support Fixtures: Use support fixtures during the reflow process to minimize warping.
  • Material Selection: Select PCB materials with low thermal expansion coefficients.
  • Even Heat Distribution: Design the PCB layout to distribute heat evenly and avoid large, unsupported areas prone to warping.

Example: Switching to a different PCB material with better thermal properties significantly reduced warpage issues in one of our projects.

6. Mitigating Electrostatic Discharge (ESD)

Challenge: ESD can damage sensitive components during handling and assembly, leading to latent defects or immediate failures.

Solution:

  • Strict ESD Measures: Implement strict ESD control measures, including grounded workstations, ESD-safe materials, and proper handling procedures.
  • Training and Audits: Train all personnel on ESD prevention techniques and regularly audit compliance with ESD protocols.

Advanced Tip:  Our workers use anti-static ESD Wrist Strap Discharge Band Grounding to avoid damaging sensitive components.

A production operator wearing an electrostatic discharge (ESD) wristband to prevent static electricity buildup.

7. Enhancing Inspection and Quality Control

Challenge: Identifying defects early in the assembly process is crucial to prevent costly rework or field failures.

Solution:

  • Robust Quality Management: Implement a robust quality management system with detailed inspection criteria and continuous improvement processes.

FAQs

What is tombstoning in SMT assembly?

Tombstoning occurs when one end of a chip component lifts off the PCB during reflow soldering, resembling a tombstone. This can be caused by uneven solder paste application or differences in thermal mass.

How can I prevent bridging in solder joints?

Ensure consistent and adequate solder paste application. Use stencils with appropriate aperture designs and implement SPI systems to catch paste defects before reflow.

What is the importance of the reflow profile in SMT assembly?

The reflow profile determines the temperature changes the PCB and components undergo during soldering. A precise profile ensures proper melting and solidification of solder paste, preventing defects such as cold joints and voids.

Why is ESD control crucial in SMT assembly?

Electrostatic discharge (ESD) can damage or degrade electronic components, leading to failures. Implementing ESD control measures ensures the integrity and reliability of the assembled PCBs.
